TM-3201 / P3D2

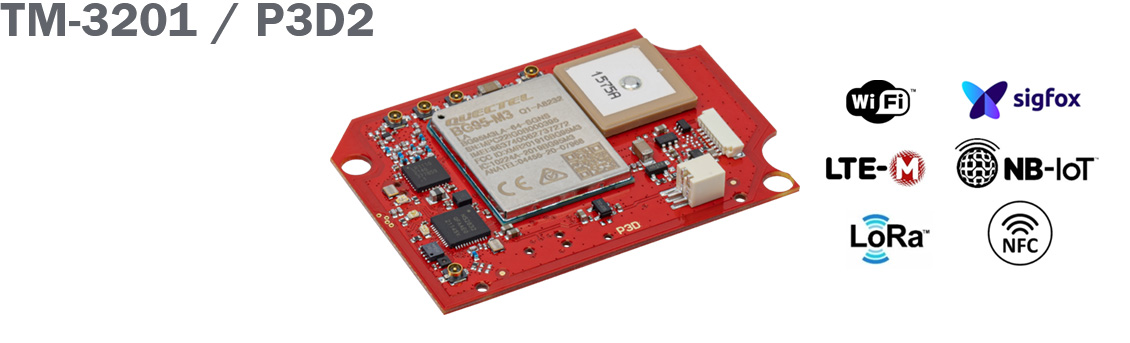

Name: TM-3201 / P3D2 | Solar Multi-Radio Asset Tracking Hardware | KCS TraceME
Brand: KCS TraceME

138 × 72 × 22 mm

TM-3201 / P3D2

Container Tracker

The KCS TraceME TM-3201 is an industrial IoT tracking unit, designed for container tracking applications.

Features
Positioning	GNSS, Wi-Fi sniffing, LoRa, Indoor RF beacons, FSK
IoT Connectivity	LoRa EU-868MHz, LTE-M, NB-IoT, Sigfox

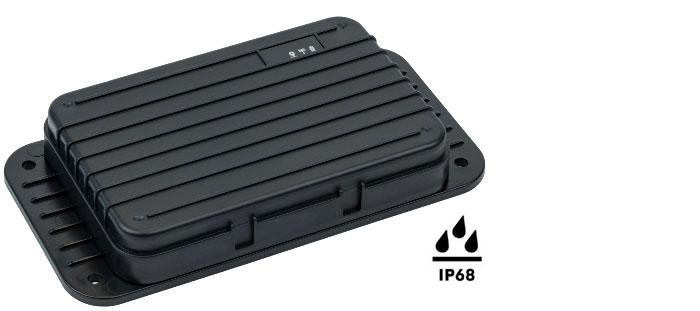

Enclosure	IP68, magnetic, screw or plastic clip on. Tamper contact
Sensor	Acceleration
Battery life	Up to 10 years
Optional Add-ons
Sensors	Temperature, humidity, light
IoT Connectivity	NFC, BLE
Power	Wireless and solar power charging

Product Description

The KCS TraceME TM-3201 is an industrial IoT tracking unit, designed for container tracking applications.

The module can be equipped with different optional features: LTE Cat-M1 / NB-IoT modem, GNSS, NFC, LoRa, Wi-Fi-sniffing, Bluetooth Smart (BLE) and proprietary RF, acceleration-, temperature/humidity, pressure - and tamper sensor.

The module provides reliable, optimized connectivity and coverage for the next generation 4G LTE Cat-M1 and NB-IoT networks and offers seamless fall back to 2G networks.

TM-3201 contains a tamper contact for fraudulent removal alert and is equipped with LoRa-based, Wi-Fi sniffing, GNSS and beacon positioning, offering excellent both indoor and outdoor traceability.

The robust IP68 enclosure, combined with more than 10 years of standby battery lifetime enables the integration of TraceME into a variety of IoT applications.

DOWNLOAD DATASHEET COMPARE DEVICES

See it in action

Usecase

Indoor Asset Tracking

Locate and monitor valuable equipment within complex indoor environments.

Technology

Indoor RF Tracking

High-accuracy indoor tracking solution using advanced RF technology for real-time positioning.

Read about this technology

Frequently Asked Questions

What are the physical dimensions of the TM-3201 / P3D2 TraceME device?

It measures 138 x 72 x 22 mm, perfect for OEM integration and flexible deployment.

Can the TM-3201 / P3D2 operate in industrial or extreme temperature environments?

Yes, it supports an operating temperature range of -20°C to +70°C for stability in outdoor conditions.

What is the total weight of the device?

It weighs 12 grams, making it ideal for lightweight tracking solutions.

What are the indoor outdoor geolocation options of the TM-3201 / P3D2 device?

It offers GNSS, Wi-Fi sniffing, LoRa localization (up to 50m outdoor, 1.5m with beacons), RF/BLE beacon technology, and FSK for robust indoor and outdoor geolocation.

What are the optional features of the TraceME TM-3201 / P3D2 device?

Optional features include LTE Cat-M1/NB-IoT, GNSS, NFC, Sigfox, LoRa with Wi-Fi positioning, BLE, proprietary RF, and various internal or external sensors.

How does the TM-3201 / P3D2 handle connectivity?

It provides optimized 4G LTE Cat-M1/NB-IoT connectivity with 2G fallback. In areas without coverage, it stores up to 60,000 positions in memory until connection is restored.

Does the device have fysical removal protection

The TM-3201 contains an light sensor for tamper functionality. When the enclosure is (fraudulent) removed from the protected asset, the module will send a tamper notification.

What are the power options for the TM-3201 / P3D2 device?

Depending on the application, different battery types and capacities might be required, which can be provided separately. By default, the module is equipped with a non-rechargeable battery.

What is the typical battery lifetime of the TM-3201 / P3D2 device?

The KCS TraceME battery-powered modules are known for their long battery life. In a typical application the battery life of the TM-3201 / P3D2 is estimated at 3 years. This can be extended up to 5 years by reducing the frequency of the GPS updates.

What is the IP rating of the TM-3201 / P3D2 device?

The TM-3201 / P3D2 has an IP68 rating, which means it is dust-tight and protected against continuous water immersion.
